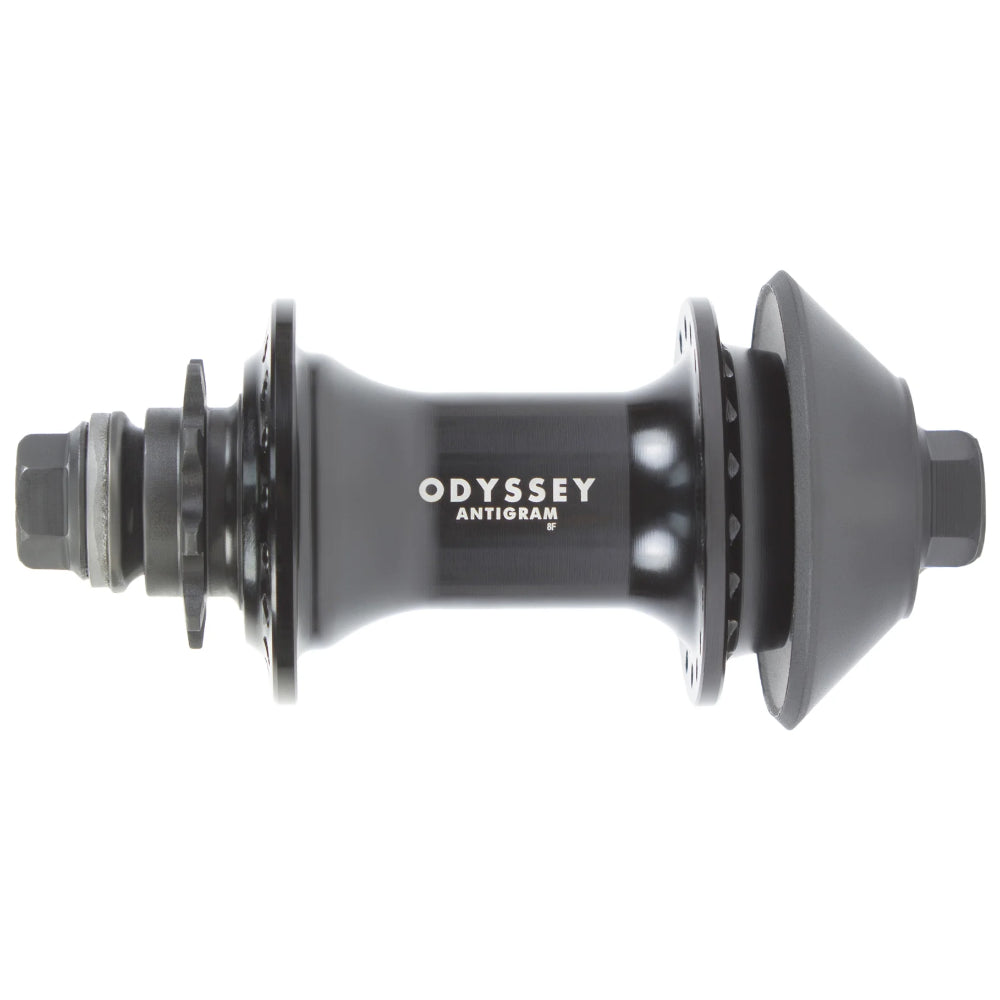

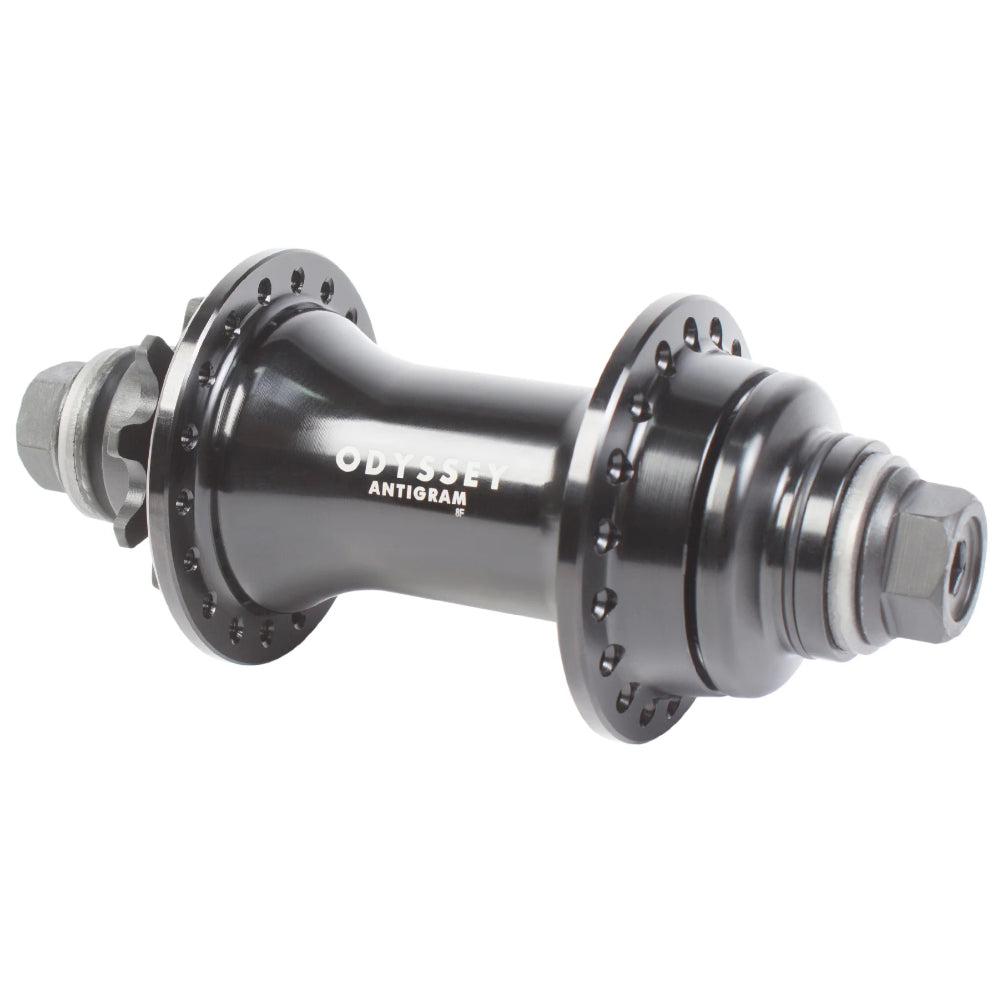

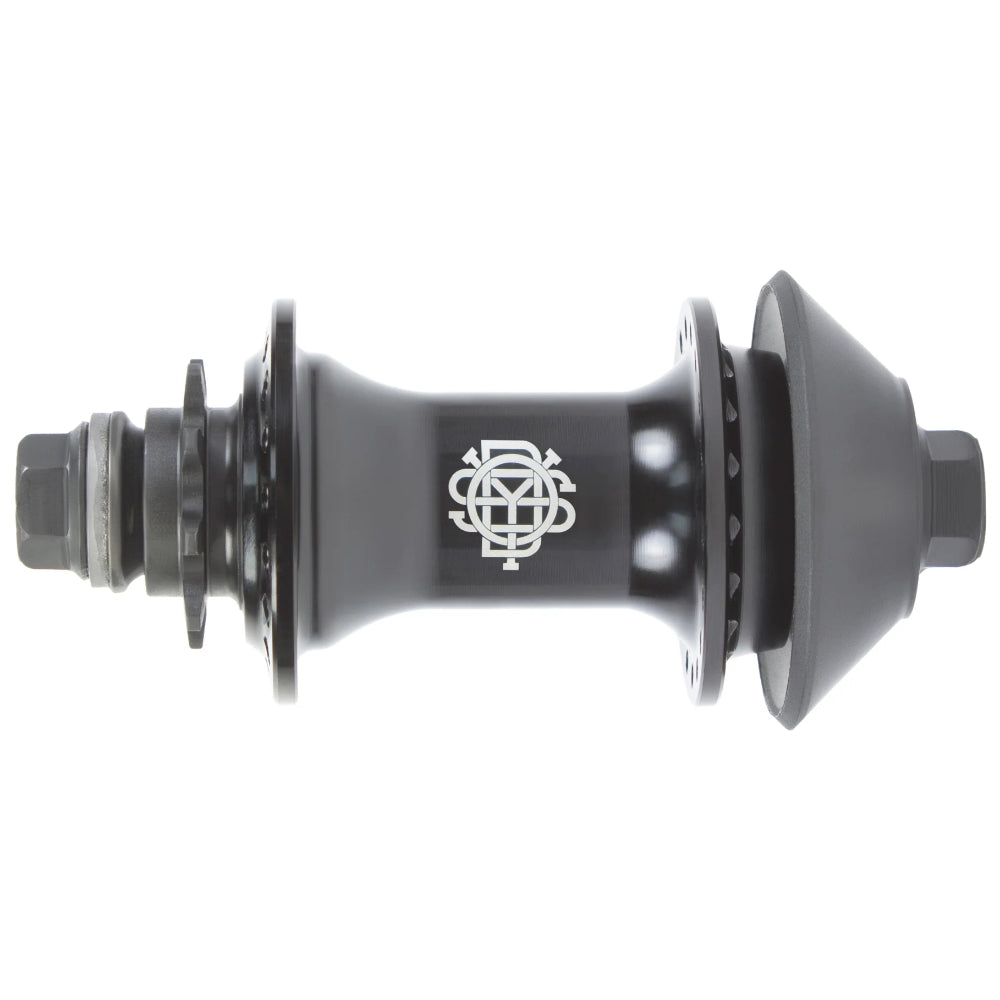

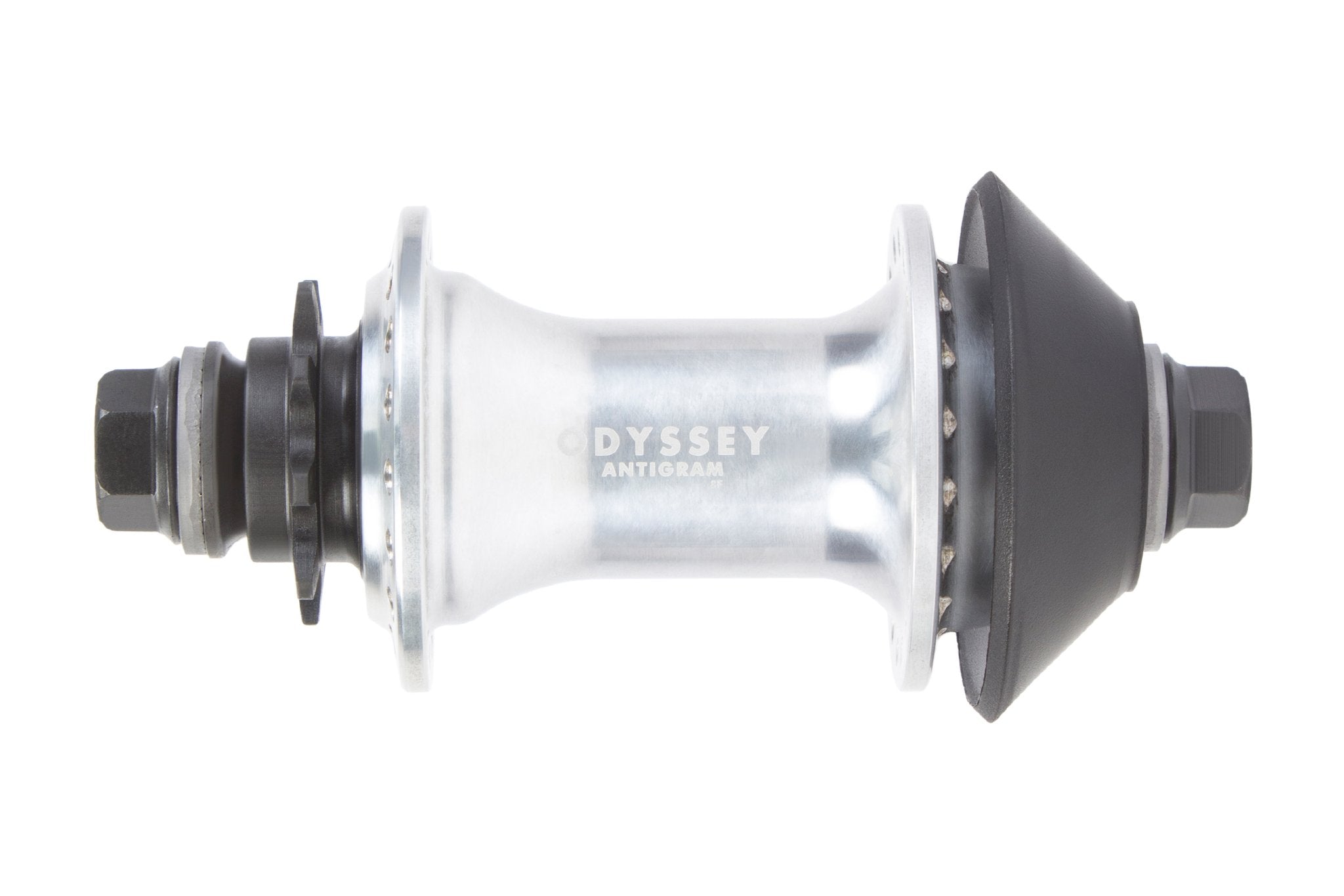

Odyssey Antigram V2 Cassette - BMX Hub

Odyssey Antigram V2 Cassette - BMX Hub

The Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and now comes with a replaceable hub guard.

The Antigram v2 now uses the same hub guard as the Clutch v2 to address all your grinding needs.

Features

• 2014-T6 forged aluminum hub shell
• 6903RS sealed cartridge ball bearings
• 14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
• 9t driver with 3-Pawl independent springs design and precision caged needle bearings
• RHD/LHD switchable
• Replaceable plastic hub guard included
• 454g with guard and 436 without guard

Measurements

• Drive Side Effective Flange Diameter: 49mm
• Non-Drive Side Effective Flange Diameter: 49mm
• Drive Side Flange to Center Distance: 30mm
• Non-Drive Side Flange to Center Distance: 30mm
