Proto Chopper NEX
- Griptapes are cut on the deck, so there might be some visible installation marks or imperfections while cutting it.
- Griptapes are not refundable once they’re put on a deck.
By choosing the Wild! option, you give us the pleasure of doing what we want!
The new 2025 Generation of TDI NEX now features sleek rounded front corners to match the new SCS V3 profile. Also, additionally reinforced I-Beam structure, totally flush bearing bores and new engravings!

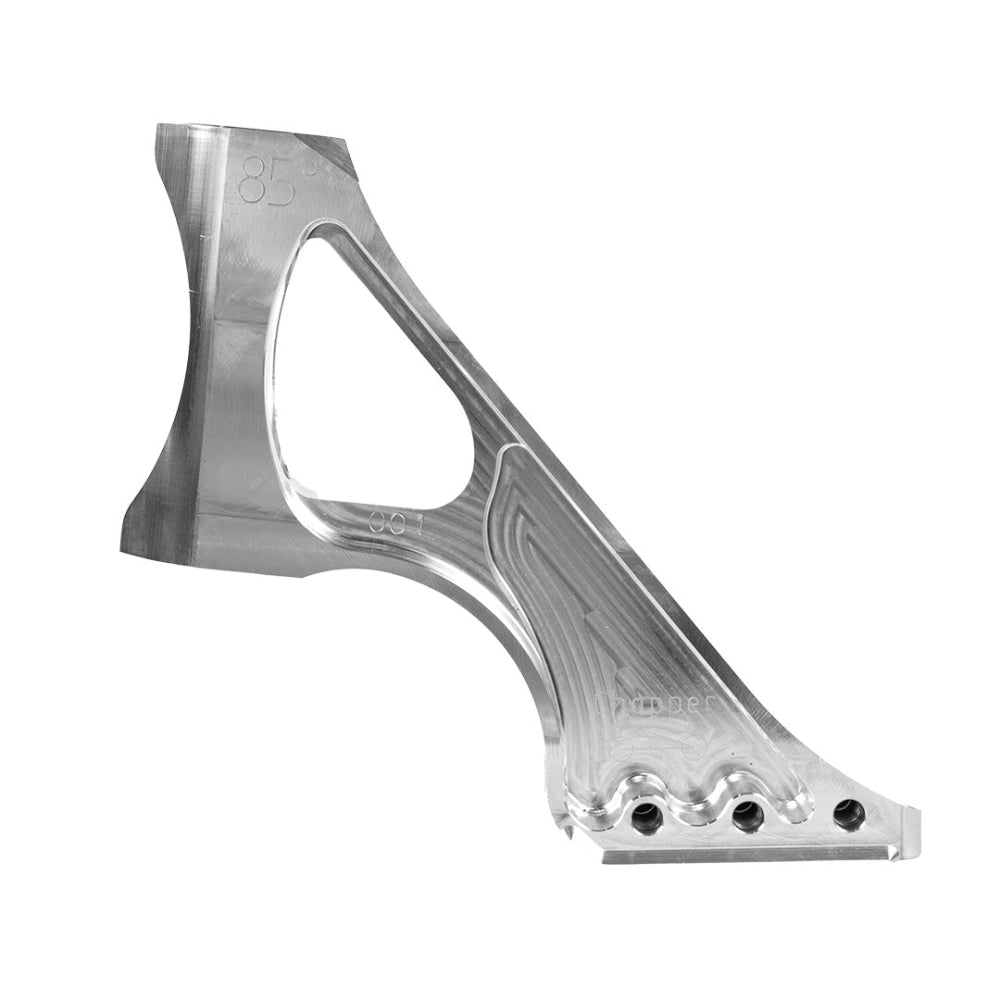

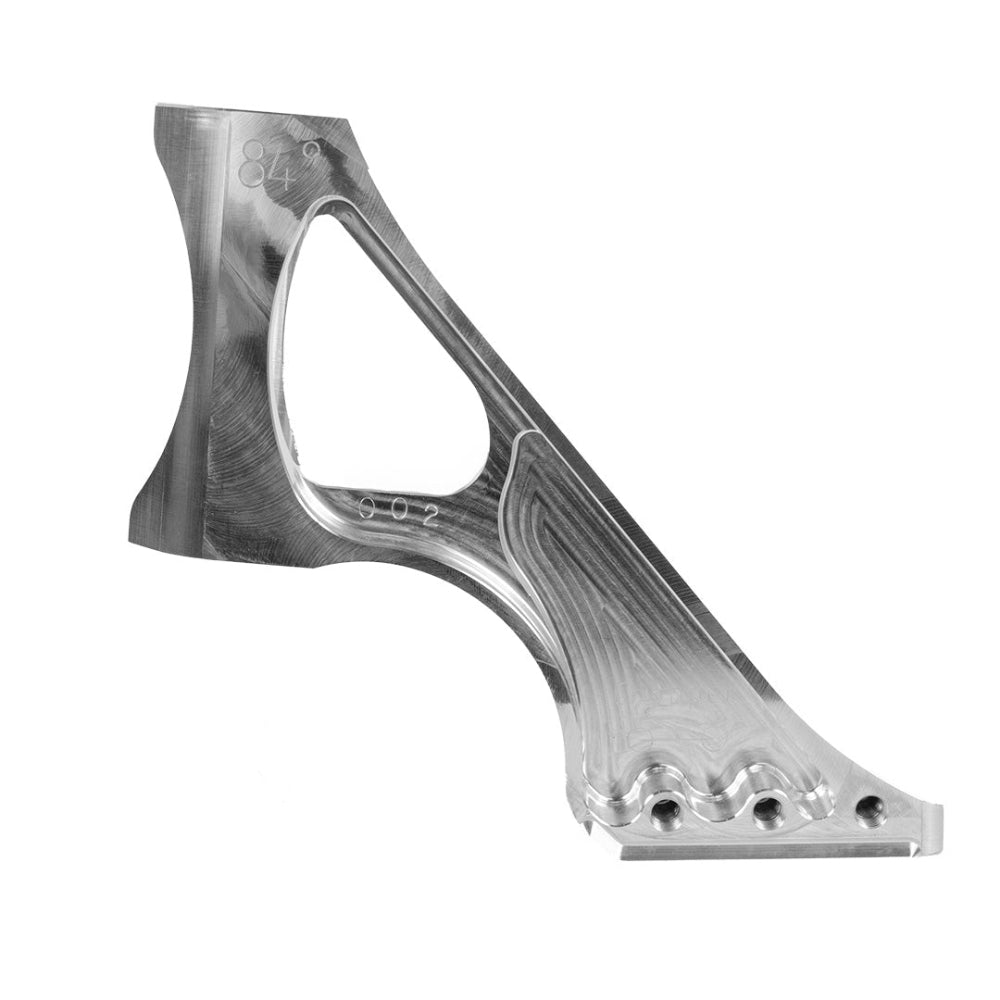

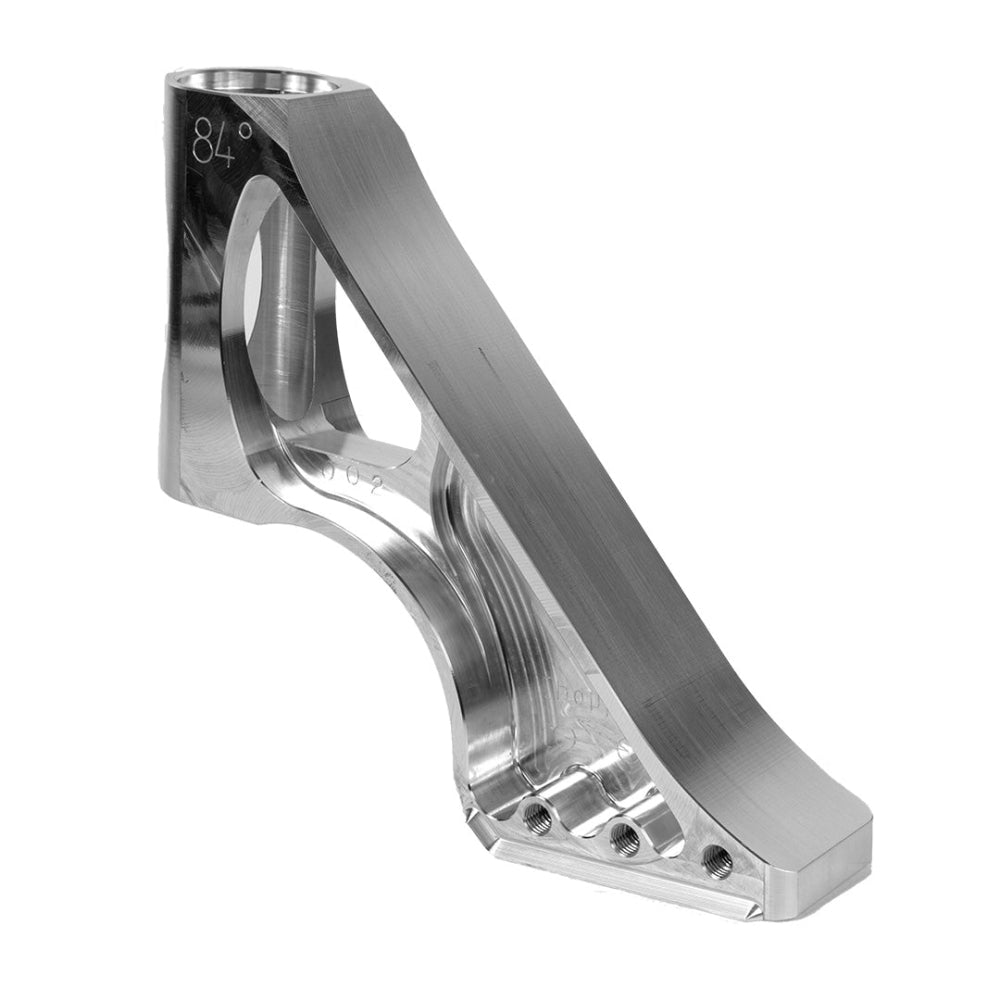

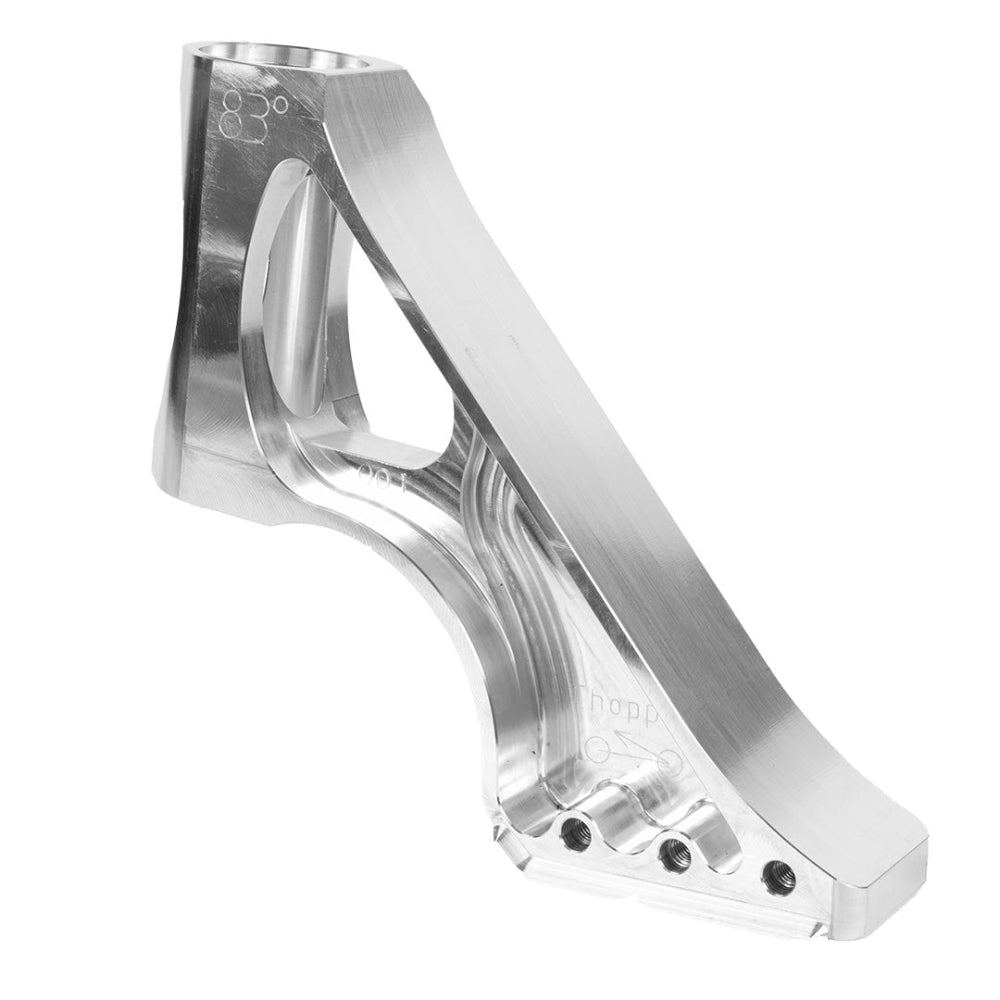

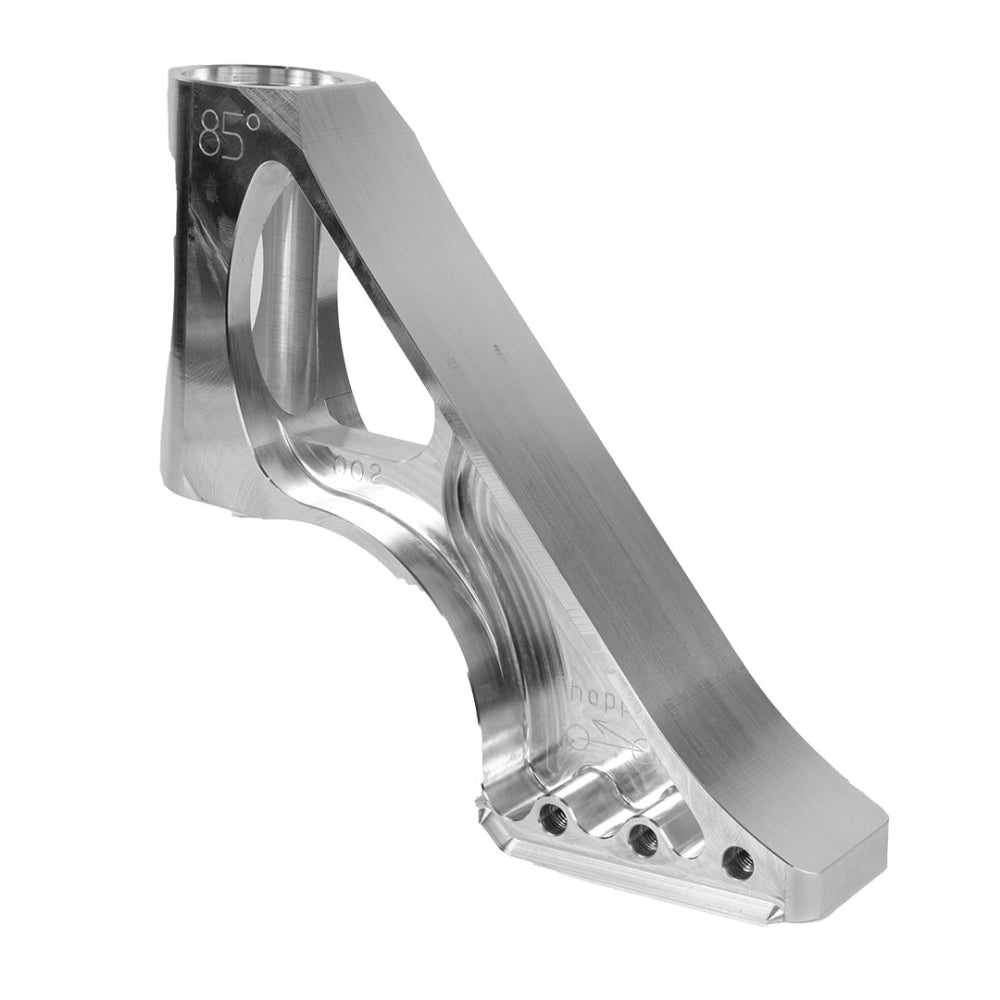

The “Chopper” NEX come in 3 headtube angles 83°, 84° and 85°. The Chopper 83° geometry is a direct substitute for the Orion Standard V2 (2012) and the Orion Integrated V1 (2015). The Chopper 84° is the direct substitute for the Orion TH (2019). The Chopper 85° is the first 85° neck ever produced in scootering and has no substitute.

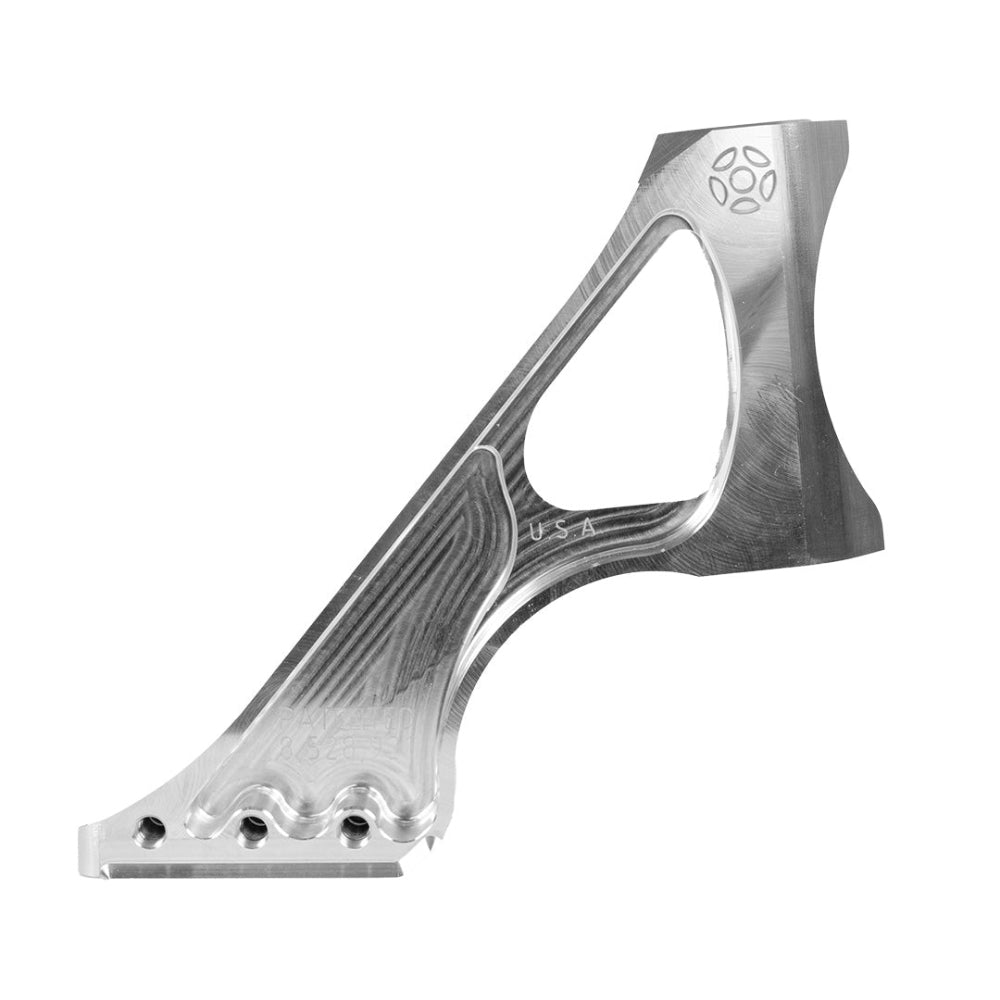

All Models feature engravings of the Model Name, Headtube Angle, Patent Number, USA and PROTO logo and hand stamped with their model-specific production number at time of final QC inspection and packaging.
All TDI NEX are manufactured in house in the PROTO Factory in San Diego, California to the highest precision CNC machining tolerances in the freestyle scooter industry with unmatched attention to detail.
CHECK OUT ALL OF PROTO TDI PARTS HERE TO COMPLETE YOUR DECK!
Specs
Weight: 0.59kg - 1.3lbs (0.75kg - 1.65lbs W/ hardware)
HT Angle: 83° / 84° / 85°
Headtube / neck: Need to be purchased separatly
Material: Aluminium

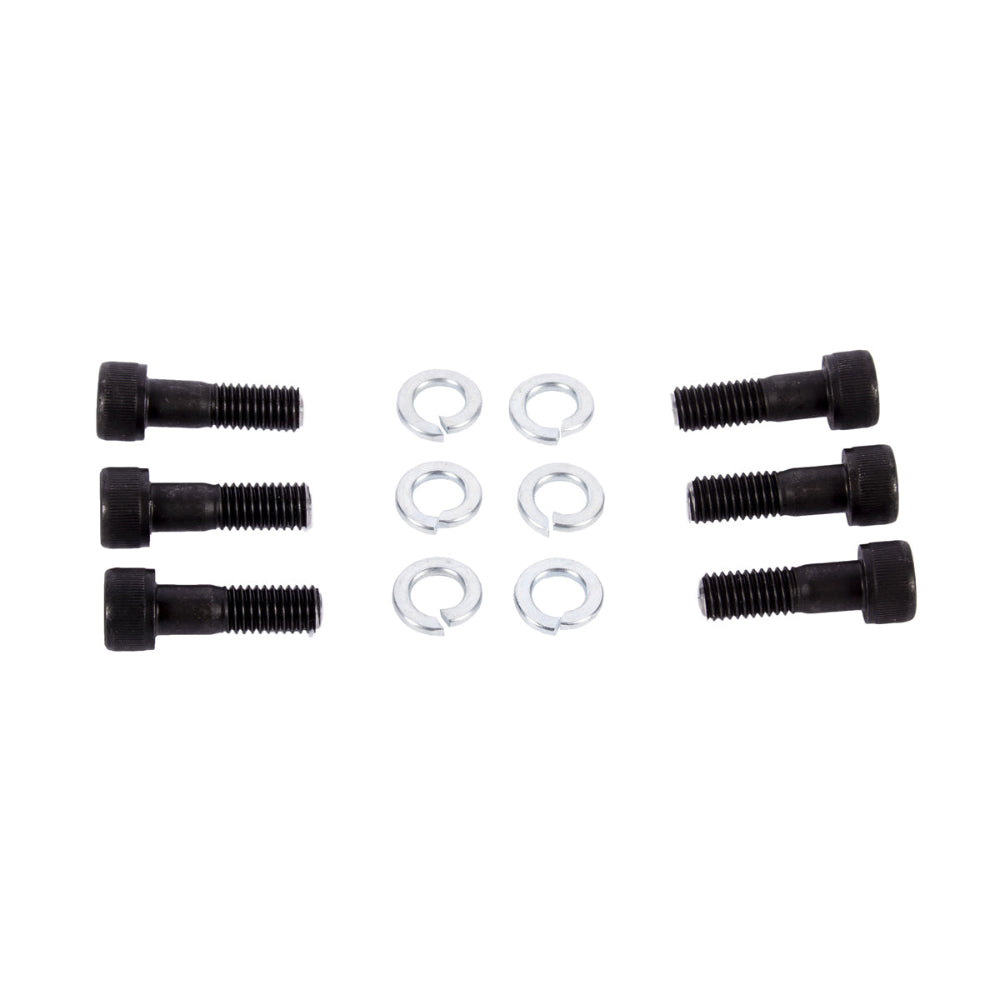

Hardware: Included
Tech:
TUNGLOK DECK INTEGRATION (TDI)™ – PATENT #8,528,921
TDI™ is a system of compatibility. This system was designed so that the Deck and Neck (Headtube) are separate components that are mated together utilizing a tongue and groove system with bolts to keep everything tight; eliminating the need for welding. The TDI™ system allows for interchangeable “NEX™” & “DEX™” allowing for unlimited customization of Deck Length, Deck Width and Headtube Angle. When your DEX™ wear out on a TDI™ System you only need to replace DEX™ itself instead of the entire Neck/Deck assembly like a welded “one-piece” Deck. NEX™ have an indefinite lifespan and only need to be replaced if you want to try a different Headtube angle or color.
VIDEO: Watch the original TDI™ Debut Video to learn how it works.
VIDEO: And Wacth the TDI™ Part 2 Video to see the evolution of the TDI™ System.
