Ethic DTC Pandemonium V2 Raw - Scooter Deck

Ethic DTC Pandemonium V2 Raw Park Scooter Deck

The lightest deck in the world, and the very first deck to stay under the Kilo.

Created and studied from every angle to achieve the ultimate in lightness, it arrives here 9 years after the iconic Pandemonium V1, in a new format.

1 cm wider than the V1 (130 mm / 5.12 in), it is also, and above all, stronger than its predecessor.

Hundreds of hours of simulations were carried out to obtain the most effective geometry possible, giving it 29% more resistance to the banana effect, as well as 40% more resistance on the neck.

now made from 6082 aluminium (slightly stronger than the usual 6061).

Now compatible with 120mm diameter wheels, it comes with a brand new fender for added lightness.

This deck also sees the arrival of the new torx male axles, which are stronger and more practical (only one spanner is needed to tighten the deck).

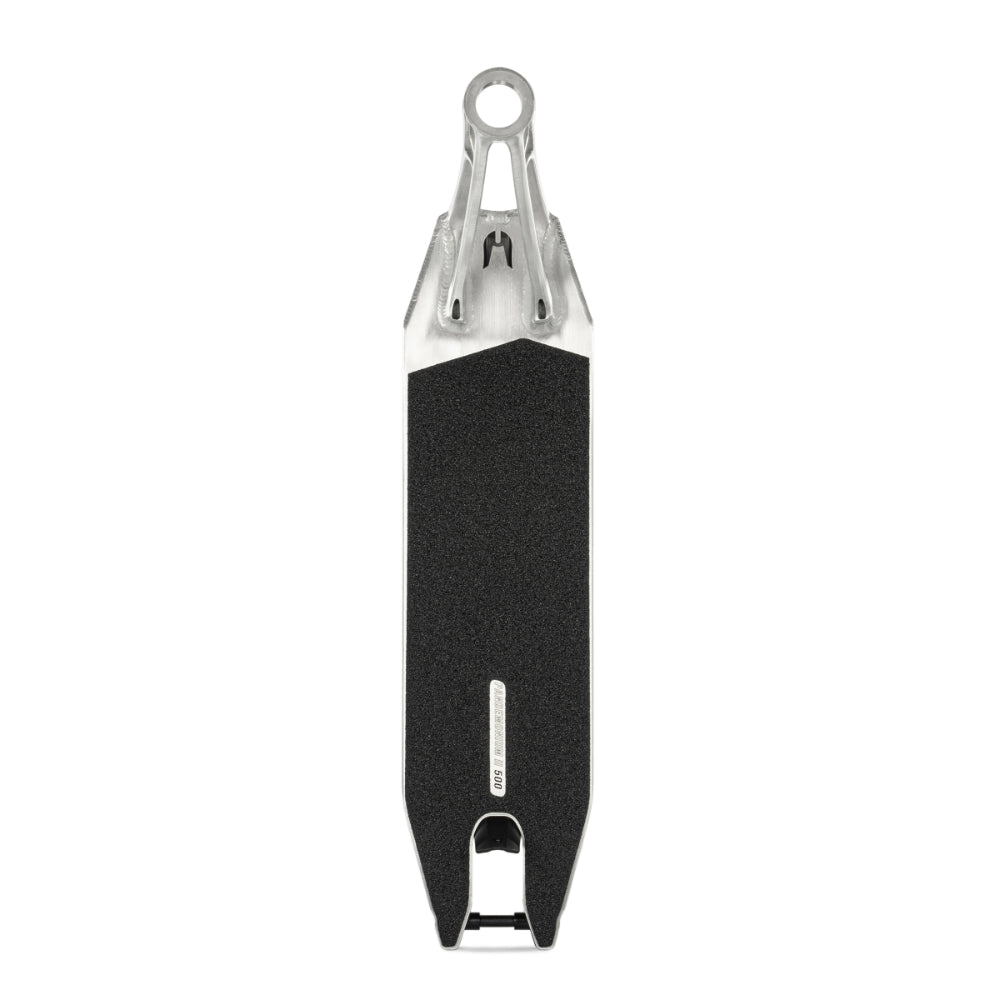

The box includes a ready-to-install pre-cut grips, an additional classic brake and a Torx 40 wrench.

There's just one thing you need to remember to ensure the longevity of your deck: tighten the rear axle to the correct torque, and don't overtighten it (25Nm Max), otherwise you're going to affect its longevity.

Specs

Weight:
460mm: 0.895 kg - 1.97 lbs
500mm: 0.955 kg - 2.09 lbs
540mm: 1.005 kg - 2.21 lbs
Length: 460mm - 18.1" / 500mm - 19.7" / 540mm - 21.3"
Width: 130mm - 5.1"

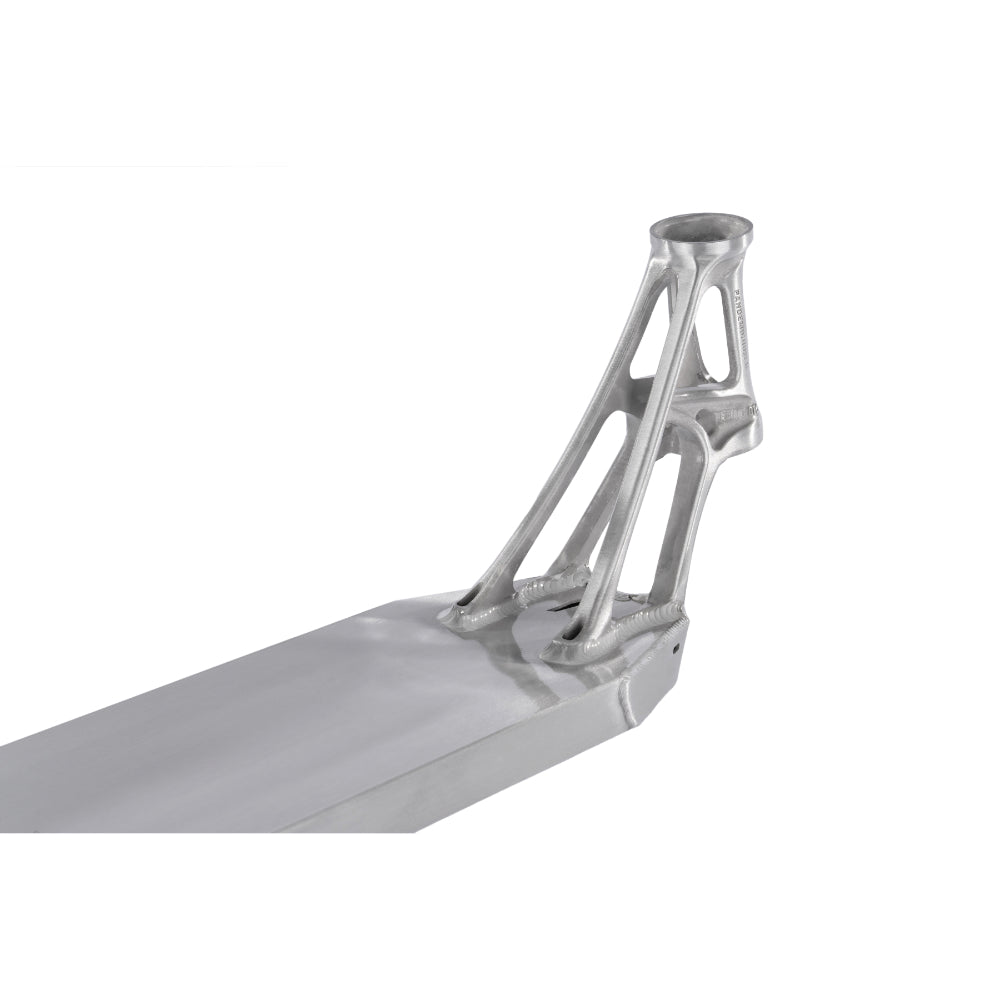

Headtube / neck: Fully forged HT and neck
HT Angle: 83°
Concave: Radius 800
End of deck type: Angle
Material: 6082-T6 aluminium (8% stronger than 6061-T6)
Brake: New Nylon Fender and brake

Compatibility

Wheel diameter
100mm: Yes
110mm: Yes
120mm: Yes
125mm: No
Wheel Width
24mm: Yes.
28mm: No
30mm: No
12STD: No
